Transducers

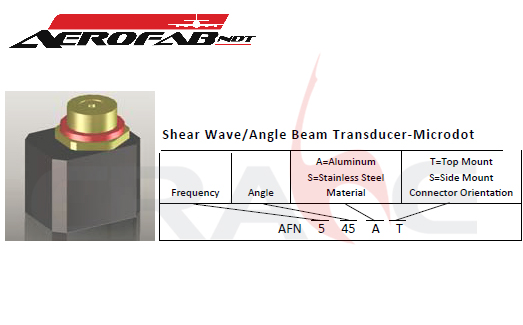

AeroFab/Shear Wave/Angle Beam Transducer‐Microdot/飞机无损探伤工具

Full range Shear Wave/Angle Beam Transducer designs with an assortment of sizes and

frequency’s. Connector top and side mounted. Materials Aluminum and Stainless Steel.

Custom designs on request.

5 MHz

Material/Size   *XX Small       Extra Small   Small           Medium        Large

Aluminum        AFN‐545AT AFX‐545AT  AFS‐545AT AFM‐545AT AFL‐545AT

Aluminum        AFN‐560AT AFX‐560AT  AFS‐560AT AFM‐560AT AFL‐560AT

Aluminum        AFN‐570AT AFX‐570AT  AFS‐570AT AFM‐570AT AFL‐570AT

Stainless Steel  AFN‐545ST AFX‐545ST  AFS‐545ST AFM‐545ST AFL‐545ST

Stainless Steel  AFN‐560ST AFX‐560ST  AFS‐560ST AFM‐560ST AFL‐560ST

Stainless Steel  AFN‐570ST AFX‐570ST  AFS‐570ST AFM‐570ST AFL‐570ST

10 MHz

Material/Size   *XX Small        Extra Small     Small            Medium          Large

Aluminum        AFN‐1045AS AFX‐1045AS AFS‐1045AS AFM‐1045AS AFL‐1045AS

Aluminum        AFN‐1060AS AFX‐1060AS AFS‐1060AS AFM‐1060AS AFL‐1060AS

Aluminum        AFN‐1070AS AFX‐1070AS AFS‐1070AS AFM‐1070AS AFL‐1070AS

Stainless Steel  AFN‐1045SS AFX‐1045SS AFS‐1045SS AFM‐1045SS AFL‐1045SS

Stainless Steel  AFN‐1060SS AFX‐1060SS AFS‐1060SS AFM‐1060SS AFL‐1060SS

Stainless Steel  AFN‐1070SS AFX‐1070SS AFS‐1070SS AFM‐1070SS AFL‐1070SS

Case Size   Element Size Angle Freq      Freq    Freq

*XX Small   .187          35    2.25 MHz 5 MHz 10 MHz

Extra Small .187           35    2.25 MHz 5 MHz 10 MHz

Small         .187          45    2.25 MHz 5 MHz 10 MHz

Medium      .250          60    2.25 MHz 5 MHz 10 MHz

Large         .375          70    2.25 MHz 5 MHz 10 MHz

Case Dim    Length Height Width

*XX Small   .300   .300   .250

Extra Small .375   .375   .260

Small         .550   .450   .260

Medium      .750   .500   .370

Large        1.000   .600   .500
