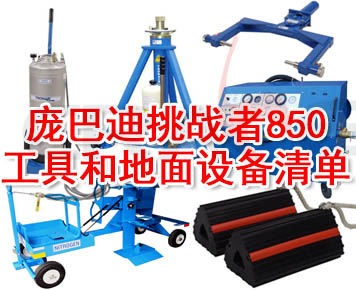

Bombardier (Business) Challenger 850/庞巴迪挑战者850/Tool And Equipment List/工具和地面设备清单
LIFTING AND SHORING (ATA-7)
02-1036C0111 Main Jack (10 ton/9 metric ton) (CE) 2 required
02A1036C0111 Main Jack with Air Pump (10 ton/9 metric ton) (CE) 2 required
K-1106 Air Pump Manifold Kit (for use on tripod jacks with air pump)
02-0527C0140 Nose Jack (5 ton/4.5 metric ton) (CE)
02A0527C0140 Nose Jack with Air Pump (5 ton/4.5 metric ton) (CE)
K-1106 Air Pump Manifold Kit (for use on tripod jacks with air pump)
02-7813C0100 Axle (12 ton/10.8 metric ton) (CE)
02-7947C0000 Portable Tripod Jack Proof Load Tester (CE)
03A5800C0010 Stabilizing Stand with Alarm (CE)
TOWING AND TAXIING (ATA-9)
01-0571-0011 Attachment Head (with radial shear) (CE)
01-1201-0011 Towbar, Multi-Head (CE)
01-0571-0011 Aircraft Attachment Head (with radial & tension/compression shear) (CE)
01-1290-0100 Towbar, Multi-Head (CE)
01-0571-0011 Aircraft Attachment Head (with radial & tension/compression shear) (CE)
01-1215-0000 Towbar, Portable Universal (CE)
01-0571-0011 Aircraft Attachment Head (with radial & tension/compression shear) (CE)
01-1229-0011 Towbar, Custom (Aluminum) with (2.125 in/5.4 cm) Eye Bolt
01-1954-6000 Multi-Head Storage Rack
01-1954-6002 Multi-Head Storage Rack, Double
JP100SSC SOFTCAPTURE® Electric Towbarless Tug (100,000 lb capacity)
PARKING AND MOORING (ATA-10)
99-9028-6000 Wheel Chocks (12 in/30.5 cm) long
SERVICING (ATA-12)
ENGINE OIL (MIL-PRF-23699)
06-5010-6800 Engine Oil Service Cart (6 gal/28 l) (CE)
06-5022-6800 Engine Oil Service Unit (2 gal/7.6 l)
06-5042-0800 Engine Oil Service Unit (8 gal/30 l)
06-5073-0800 CSD Service Cart
KHC-2173 Coupling Kit, Engine (CSD Fill)
HYDRAULIC FLUID (Phosphate Ester)
06-4005-3611 Hydraulic Component Test Unit (2 qt/1.9 lt) & (3,000 psi/207 bar)
06-4035-3600 Recommended, Hydraulic Component Test Cart (8 gal/30 l) & (4,000 psi/276 bar)
06-5020-3600 Hydraulic Reservoir Service Unit (holds two 2 gal/7.6 l buckets)
06-5022-6600 Recommended, Hydraulic Reservoir Service Unit (2 gal/7.6 l) & (75psi/5.2 bar)
06-5024-3610 Hydraulic Fluid Transfer Pump (attaches to 55 gal/208 l drum) & (100 psi/6.9 bar)
06-5042-3600 Hydraulic Reservoir Service Cart (8 gal/30 l) & (200 psi/13.8 bar)
KHC-1012 Coupling Kit, Reservoir Service
KHC-1012-M Reservoir Coupling Kit w/metal dust plug
LAVATORY
10-6402-0010 Lavatory Service Unit (68 gal/257 l) waste tank & (31 gal/117 l) fill reservoir
Required, Select from the following to meet your specific requirements:
K-2029 Dump Coupling/Hose Assembly
K-2410 Fill Coupling
10-6403-6000 Drain Plug Tool
10-6412-0000 Lavatory Service Unit (68 gal/257 l) waste tank & (31 gal/117 l) fill reservoir (electric fill pump)
Required, Select from the following to meet your specific requirements:
K-2029 Dump Coupling/Hose Assembly
K-2410 Fill Coupling
NITROGEN
18-4201-1010 Nitrogen Booster (Maximum 4,000 psi/276 bar)
K-1225 Regulator Kit (operates air pump at remote location)
18-4208-0010 Four Bottle Service Cart (booster, manifold, high & low pressure regulators) (CE)
18-4303-0000 Four Bottle Service Cart (manifold, high & low pressure regulators)
18-4315-0000 Tiltable Four Bottle Service Cart (booster, manifold, high & low pressure regulators) (CE)
18-4318-0000 Tiltable Four Bottle Service Cart (manifold, high & low pressure regulators)
K-3706 Coupling, High Pressure Hose (CE)
PC-1107 300 cu ft certified Nitrogen Bottle
OXYGEN (All painted surfaces are Oxygen Green)
20-4500-7000 Oxygen Booster (Maximum 2,200 psi/152 bar) (CE)
20-4502-6000 Oxygen Service Regulator (0-2,500 psi/0-172 bar)
20-4504-7000 Four Bottle Cart (manifold, high & low pressure regulator)
20-4505-7000 Four Bottle Service Cart (booster, manifold & high pressure regulator) (CE)
20-4523-0000 Tiltable Four Bottle Service Cart (booster, manifold & high pressure regulator) (CE)
20-4525-0000 Tiltable Four Bottle Service Cart (manifold & high pressure regulator)
PC-1006 1/4 JIC Flare, Mates with 10089-3 3/8-24 UNF-2B
PC-1009 1/4 JIC Flare, 9/16-18 UNF-2B
PC-1124 200 cu ft certified Oxygen bottle - green
POTABLE WATER
19-4301-0000 Potable Water Cart, Standard 100 gal (379 l) fill reservoir (CE)
K-2411 Potable Water Coupling Replacement
AIR CONDITIONING (ATA-21)
15A7603-1000 208 input voltage/60 Hz frequency
15B7603-1000 230 input voltage/60 Hz frequency
15C7603-1000 380 input voltage/60 Hz frequency
15D7603-1000 460 input voltage/60 Hz frequency
15E7603-1000 575 input voltage/60 Hz frequency
15F7603-1000 200 input voltage/50 Hz frequency
15G7603-1000 220 input voltage/50 Hz frequency
15H7603-1000 380 input voltage/50 Hz frequency
15J7603-1000 415 input voltage/50 Hz frequency
15K7603-1000 440 input voltage/50 Hz frequency
ELECTRICAL POWER (ATA-24)
112850D0100 Rectifier (28.5 vdc, 50 Hz) 50 ft input cable, dual output cables (CE)
Rectifier voltage is required when requesting a quote
112850D0200 Rectifier (28.5 vdc, 50 Hz) 100 ft input cable, dual output cables (CE)
Rectifier voltage is required when requesting a quote
112850S0000 Rectifier (28.5 vdc, 50Hz) no input cable (CE)
Rectifier voltage is required when requesting a quote
112850S0100 Rectifier (28.5 vdc, 50Hz) 50 ft input cable (CE)
Rectifier voltage is required when requesting a quote
112850S0200 Rectifier (28.5 vdc, 50Hz) 100 ft input cable (CE)
Rectifier voltage is required when requesting a quote
112860D0000 Rectifier (28.5 vdc, 60Hz) no input cable (CE)
Rectifier voltage is required when requesting a quote
112860D0100 Rectifier (28.5 vdc, 60 Hz) 50 ft input cable, dual output cables (CE)
Rectifier voltage is required when requesting a quote
112860D0200 Rectifier (28.5 vdc, 60 Hz) 100 ft input cable, dual output cables (CE)
Rectifier voltage is required when requesting a quote
112860S0000 Rectifier (28.5 vdc, 60Hz) no input cable (CE)
Rectifier voltage is required when requesting a quote
112860S0100 Rectifier (28.5 vdc, 60Hz) 50 ft input cable (CE)
Rectifier voltage is required when requesting a quote
112860S0200 Rectifier (28.5 vdc, 60Hz) 100 ft input cable (CE)
Rectifier voltage is required when requesting a quote
11-6610-6000 Battery Charger/Analyzer (NiCad)
1190400C128T3 400 Hz AC / 28.5 VDC Diesel GPU (CE)
1190400C1T3 400 Hz Diesel GPU (CE)
1190400C28T3 400 Hz AC / 28.5 VDC Diesel GPU (CE)
1190400CT3 400 Hz Diesel GPU (CE)
FUEL (ATA-28)
07-3000-1921 Fuel Transfer Cart (20 gpm/76 lpm)
07-3001-4900 Fuel Sample Test Tool (1 qt/0.95 lt)
HYDRAULIC POWER (ATA-29)
06-5051-6600 Laser Contamination Monitor
K-2340 Hydraulic Fluid Contamination Monitor In-Line Sensor
13-6615-6000 Ram Air Turbine (RAT) Actuator Adjustment Tool
AGE17073A Ram Air Turbine (RAT) Test Equipment
5431 Hydraulic Power Unit, 54 Series (CE) (base model)
Voltage is required when requesting a quote
5431-C Dual System
5431-EI Required, (New HPU) Hydraulic Coupling Kit
54311EI_CEKQ4
Recommended: Hydraulic Power Unit (CE)
Voltage is required when requesting a quote
KHC-1011 Hydraulic Coupling Kit, Replacement (5230-AI)
KHC-1011-M Hydraulic Coupling Kit w/metal dust plug, Replacement
KHC-4023 HPU Self Cleaning Circulation Kit (PE)
ICE AND RAIN PROTECTION (ATA-30)
09-6200-0010 Mobile Deicer Cart (55 gal/208 l) Type I Fluid only
LANDING GEAR (ATA-32)
14-6802-6000 Strut Deflator
14-6804-6000 Nitrogen Service Regulator (0-2,500 psi/172 bar)
14-6805-6010 Strut Service Gauge (3,000 psi/307 bar)
14-6806-6011 Tire Pressure Gauge (300 psi/20.7 bar) (CE)
14-6807-6011 Tire Service Gauge (300 psi/20.7 bar) (CE)
14-6808-6000 Nitrogen Service Regulator (0-500 psi/34.5 bar)
14-6883-0110 Wheel & Break Dolly (CE)
14-6892-6000 Tire Deflator
14-6915-0100 Universal Tool - Strut, Break & Tire
14-6918-0600 Brake Service Unit
14B6801-0120 Hydraulic Tire Bead Breaker
Required, ONE each Main & Nose Adapter Rings:
Z-1063-18 Tire Adapter Ring, Mains (H29 x 9.0-12)
Z-1064-13 Tire Adapter Ring, Nose (18 x 4.4 DT)
FUSELAGE (ATA-53)
04-6001-1100 Hydraulic Maintenance Platform (B1 Type) Maximum Height (12 ft/3.7 m)
04-6005-1100 Hydraulic Maintenance Platform Maximum Height (10 ft/3 m)
04-6028-0121 Universal Utility Lift (500 lb/227 kg) Capacity
Z-4082 Lift Tray Assembly
04-6029-5111 Hydraulic Maintenance Platform (B4 Type) Maximum Height (8 ft/2.4 m) (CE)
04-6152-0120 Hydraulic Utility Crane (2,750 lb/1,247 kg) Capacity (CE)
K-2012 Gooseneck Boom Kit
K-2013 Pneumatic Pump Kit
K-2053 Hand Winch Kit
POWER PLANT (ATA-71)
08-4049-0013 Engine Compressor Washer (CE)
K-1710 Adapter Kit
