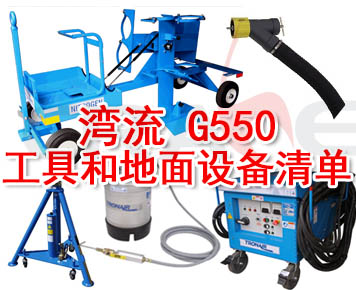

Gulfstream G550/湾流 G550/Tool And Equipment List/工具和地面设备清单
LIFTING AND SHORING (ATA-7)
02-1248C0112 Main Jack (12 ton) (CE)
02-7830C0110 Axle Jack (25 ton) (CE)
02-7947C0000 Portable Tripod Jack Proof Load Tester (CE)
02A1248C0112 Nose Jack (12 ton/10.8 metric ton) with air pump (CE)
K-1106 Air Pump Manifold Kit (for use on tripod jacks with Air Pump)
02A7844C0111 Main Jack (30 ton/27.2 metric ton) with air pump (CE) 2 required
K-1106 Air Pump Manifold Kit (for use on tripod jacks with Air Pump)
TOWING AND TAXIING (ATA-9)
01-0806-0010 Aircraft Attachment Head (CE)
01-1261-0000 Towbar, Portable (split, three-piece design) (CE)
01-1270-0010 Towbar, Multi-Head (CE)
01-0806-0010 Aircraft Attachment Head (CE)
01-1274-0030 Towbar, Custom with Shock Assembly (2.125 in/5.4 cm) Eye Bolt (CE)
01-1290-0100 Towbar, Multi-Head (CE)
01-0806-0010 Aircraft Attachment Head (CE)
JP100S Electric Towbarless Tug (100,000 lb capacity) sit down
JP100SSC SOFTCAPTURE® Electric Towbarless Tug (100,000 lb capacity)
JP125S Electric Towbarless Tug (125,000 lb capacity)
PARKING AND MOORING (ATA-10)
99-9028-6000 Wheel Chocks (12 in/30.5 cm) long
99-9045-9000 TronLock security wheel chock
SERVICING (ATA-12)
ENGINE OIL (MIL-PRF-23699)
06-5009-6800 Engine Oil Service Unit (2.5 gal/9.5 l)
06-5010-6800 Engine Oil Service Cart (6 gal/28 l) (CE)
06-5022-6800 Engine Oil Service Unit (2 gal/7.6 l)
06-5042-0800 Engine Oil Service Cart (8 gal/30 l)
06-5073-0800 CSD Service Cart
KHC-2173 Coupling Kit, Engine (CSD Fill)
HYDRAULIC FLUID (Phosphate Ester)
06-4005-3611 Hydraulic Component Test Unit (2 qt/1.9 lt) & (3,000 psi/207 bar)
06-4035-3600 Recommended, Hydraulic Component Test Cart (8 gal/30 l) & (4,000 psi/276 bar)
06-5022-6600 Hydraulic Reservoir Service Unit (2 gal/7.6 l) & (200 psi/13.8 bar)
KHC-1009 Coupling Kit, Reservoir Service
06-5042-3600 Hydraulic Reservoir Service Cart (8 gal/30 l) & (200 psi/13.8 bar)
KHC-1009 Coupling Kit, Reservoir Service
06-5043-3600 Hydraulic Reservoir Service Cart with Towbar (15 gal/57 l) & (200 psi/13.8 bar)
KHC-1009 Coupling Kit, Reservoir Service
LAVATORY
10-6403-6000 Drain Plug Tool (for use with T connector)
10-6410-0000 Lavatory Service Unit (68 gal/257 l) waste tank & (31 gal/117 l) fill reservoir (pneumatic fill pump)
Select from the following to meet your specific requirements:
K-2029 Dump Coupling/Hose Assembly
K-2410 Fill Coupling
10-6412-0000 Lavatory Service Unit (68 gal/257 l) waste tank & (31 gal/117 l) fill reservoir (electric fill pump)
Required, Select from the following to meet your specific requirements:
K-2029 Dump Coupling/Hose Assembly
K-2410 Fill Coupling
NITROGEN
18-4201-1010 Nitrogen Booster (Maximum 4,000 psi/276 bar)
K-1225 Nitrogen Booster (Maximum 4,000 psi/276 bar)
18-4208-0010 Four Bottle Service Cart (booster, manifold, high & low pressure regulators) (CE)
18-4303-0000 Four Bottle Service Cart (manifold, high & low pressure regulators)
18-4315-0000 Tiltable Four Bottle Service Cart (booster, manifold, high & low pressure regulators) (CE)
18-4318-0000 Tiltable Four Bottle Service Cart (manifold, high & low pressure regulators)
K-3706 Coupling, High Pressure Hose (CE)
PC-1107 300 cu ft certified Nitrogen Bottle
OXYGEN (All painted surfaces are Oxygen Green)
20-4500-7000 Oxygen Booster (Maximum 2,200 psi/152 bar) (CE)
20-4502-6000 Oxygen Service Regulator (0-2,500 psi/0-172 bar)
20-4504-7000 Four Bottle Cart (manifold, high & low pressure regulator)
20-4505-7000 Four Bottle Service Cart (booster, manifold, high & low pressure regulators) (CE)
20-4523-0000 Tiltable Four Bottle Service Cart (booster, manifold & high pressure regulator) (CE)
20-4525-0000 Tiltable Four Bottle Service Cart (manifold & high pressure regulator)
PC-1006 1/4 JIC Flare, Mates with 10089-3 3/8-24 UNF-2B
PC-1124 200 cu ft certified Oxygen bottle - green
POTABLE WATER
19-4305-0000 Potable Water Cart, Standard (31 gal/117) fill reservoir (CE) (unit includes coupling)
19-4306-0000 Potable Water Cart, Cold Weather (31 gal/117) fill reservoir (unit includes coupling)
K-2411 Potable Water Coupling Replacement
ELECTRICAL POWER (ATA-24)
11-2820-0000 Tier 4, 28.5 Diesel GPU (28.5 vdc, 800 continuous, 2,000 amp peak) (CE)
112820C1T3 28.5 Diesel GPU (28.5 vdc, 800 continuous, 2,000 amp peak) (CE)
112820CS1T3 28.5 Diesel GPU (28.5 vdc, 800 continuous, 2,000 amp peak) (CE)
112820CST3 28.5 Diesel GPU (28.5 vdc, 800 continuous, 2,000 amp peak) (CE)
112820CT3 28.5 Diesel GPU (28.5 vdc, 800 continuous, 2,000 amp peak) (CE)
112850D0000 Rectifier (28.5 vdc, 50Hz) no input cable (CE)
Rectifier voltage is required when requesting a quote
112850D0100 Rectifier (28.5 vdc, 50 Hz) 50 ft input cable, dual output cables (CE)
Rectifier voltage is required when requesting a quote
112850D0200 Rectifier (28.5 vdc, 50 Hz) 100 ft input cable, dual output cables (CE)
Rectifier voltage is required when requesting a quote
112850S0000 Rectifier (28.5 vdc, 50Hz) no input cable (CE)
Rectifier voltage is required when requesting a quote
112850S0100 Rectifier (28.5 vdc, 50Hz) 50 ft input cable (CE)
National Stocking Number: 6130015783140
Rectifier voltage is required when requesting a quote
112850S0200 Rectifier (28.5 vdc, 50Hz) 100 ft input cable (CE)
Rectifier voltage is required when requesting a quote
112860D0000 Rectifier (28.5 vdc, 60Hz) no input cable (CE)
Rectifier voltage is required when requesting a quote
112860D0100 Rectifier (28.5 vdc, 60 Hz) 50 ft input cable, dual output cables (CE)
Rectifier voltage is required when requesting a quote
112860D0200 Rectifier (28.5 vdc, 60 Hz) 100 ft input cable, dual output cables (CE)
Rectifier voltage is required when requesting a quote
112860S0000 Rectifier (28.5 vdc, 60Hz) no input cable (CE)
Rectifier voltage is required when requesting a quote
112860S0100 Rectifier (28.5 vdc, 60Hz) 50 ft input cable (CE)
Rectifier voltage is required when requesting a quote
112860S0200 Rectifier (28.5 vdc, 60Hz) 100 ft input cable (CE)
Rectifier voltage is required when requesting a quote
11-6610-6000 Battery Charger/Analyzer (NiCad)
1190400C128T3 400 Hz AC / 28.5 VDC Diesel GPU (CE)
1190400C1T3 400 Hz Diesel GPU (CE)
1190400C28T3 400 Hz AC / 28.5 VDC Diesel GPU (CE)
1190400CT3 400 Hz Diesel GPU (CE)
FUEL (ATA-28)
07-3000-1921 Fuel Transfer Cart (20 gpm/76 lpm)
07-3006-6900 Fuel Sample Test Tool (1 qt/0.95 lt)
HYDRAULIC POWER (ATA-29)
06-5051-6600 Laser Contamination Monitor
K-2340 ydraulic Fluid Contamination Monitor In-Line Sensor
56311AF_U47 Hydraulic Power Unit (CE)
Voltage is required when requesting a quote
57311AF_U47 Hydraulic Power Unit (CE)
Voltage is required when requesting a quote
673A Hydraulic Power Unit, Diesel Engine Driven, 67 Series (CE)
KHC-1008-A1 Hydraulic Coupling Kit, Replacement (5731-AF)
KHC-4025 HPU Self Cleaning Circulation Kit (PE), Optional
ICE AND RAIN PROTECTION (ATA-30)
09-6200-0010 Mobile Deicer Cart (55 gal/208 l) Type I Fluid only
LANDING GEAR (ATA-32)
06-5076-9400 Brake Bleed Cart
K-4395 Brake Adapter
14-6802-6000 Strut Deflator
14-6804-6000 Nitrogen Service Regulator (0-2,500 psi/172 bar)
14-6805-6010 Strut Service Gauge (3,000 psi/207 bar)
14-6806-6011 Tire Pressure Gauge (300 psi/20.7 bar) (CE)
14-6807-6011 Tire Service Gauge (300 psi/20.7 bar) Shop Air (CE)
14-6808-6000 Nitrogen Service Regulator (0-500 psi/34.5 bar)
14-6830-6012 Tire Service Gauge (300 psi/20.7 bar) Nitrogen
14-6878-0110 Heavy Duty Hydraulic Tire Bead Breaker (CE)
K-3151 Nose Tire Adapter Kit
14-6883-0110 Wheel & Break Dolly (CE)
K-2965 Nose Tire Adapter Kit
14-6892-6000 Tire Deflator
14-6909C0000 Wheel Dolly (CE)
14-6918-0600 Brake Service Unit
K-4395 Brake Adapter
14-6919-0110 Strut Service Tool
K-4126 Axle Adapter (includes K-4127, K-4128, K-4129, K-4130)
K-4129 Axle Adapter (3.610 diameter)
K-4130 Axle Adapter (3.840 diameter)
FUSELAGE (ATA-53)
04-6001-1100 Hydraulic Maintenance Platform (B1 Type) Maximum Height (12 ft/3.7 m)
04-6005-1100 Hydraulic Maintenance Platform (B1 Type) Maximum Height (10 ft/3 m)
04-6028-0121 Universal Utility Lift (500 lb/227 kg) Capacity
K-3057 Crane Hook Attachment Kit
K-4400 Battery Lift Kit
04-6029-5111 Hydraulic Maintenance Platform (B4 Type) Maximum Height (8 ft/2.4 m) (CE)
04-6030-5111 Hydraulic Maintenance Platform (B5 Type) Maximum Height (12 ft/3.7 m) (CE)
04-6152-0120 Hydraulic Utility Crane (2,750 lb/1,247 kg) Capacity (CE)
K-2012 Gooseneck Boom Kit
K-2013 Pneumatic Pump Kit
K-2953 Hand Winch Kit
更多产品型号选择请咨询工作人员
